FAQ: Colored Pages from the 1988 ATX Hydraulic Circuit (19 Pages)

Colored pages from the 1988 ATX Hydraulic Circuit (19 Pages) These are all THUMBNAILS! Don't forget to click on the one you want for the whole picture.

P Range


R Range


N Range; Below 18 km/h or 11 MPH


N Range; Above 18 km/h or 11 MPH


D Range; 1st Gear


D Range; 2nd Gear


D Range; 3rd Gear, Below 40 km/h or 25 MPH


D Range; 3rd Gear, Above 40 km/h or 25 MPH, Lock-Up On


D Range; Over Drive, Lock-Up On


S Range; 1st Gear

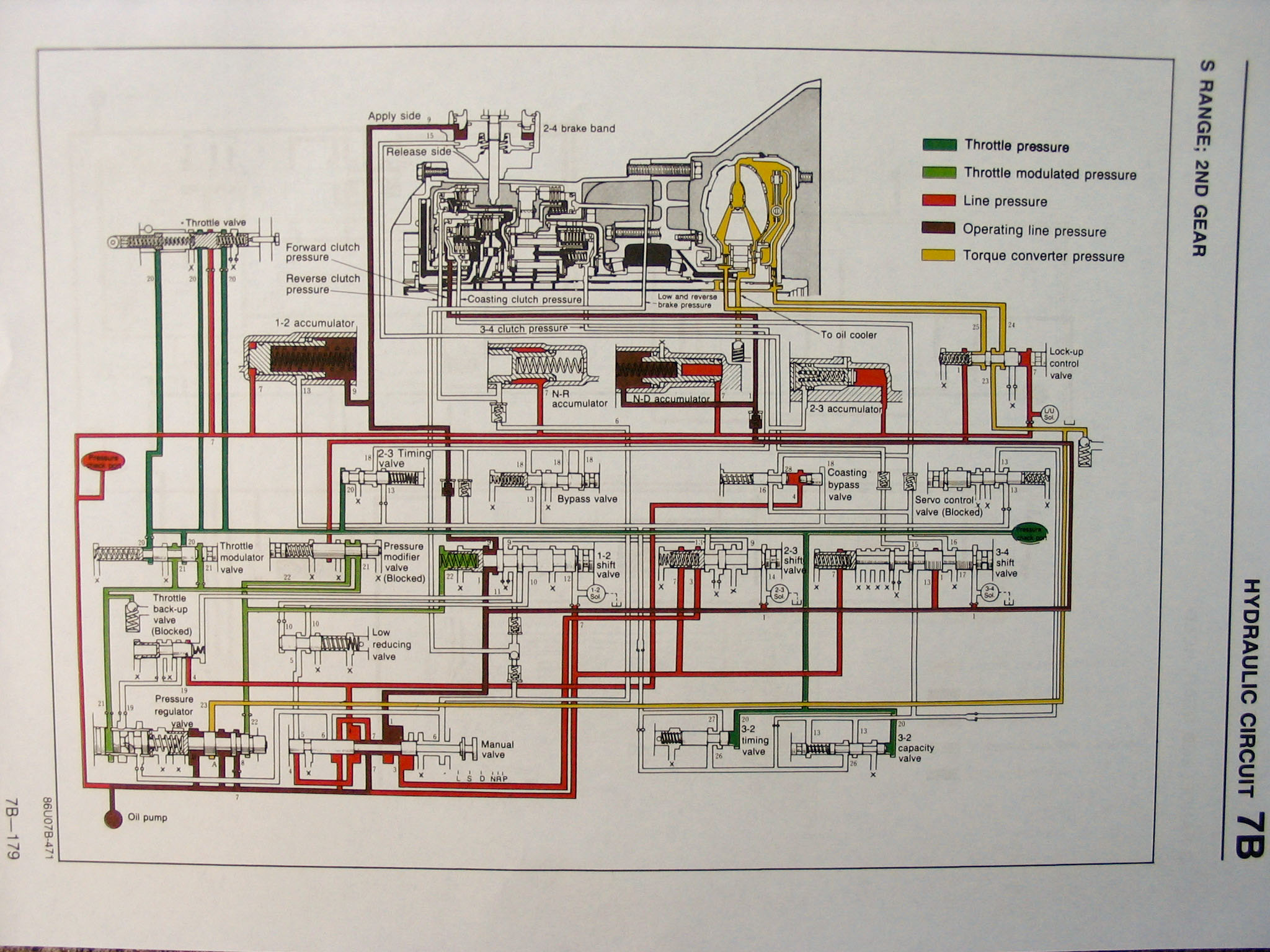

S Range; 2nd Gear


S Range; 2nd Gear, Hold


S Range; 3rd Gear, Below 40 km/h or 25 MPH

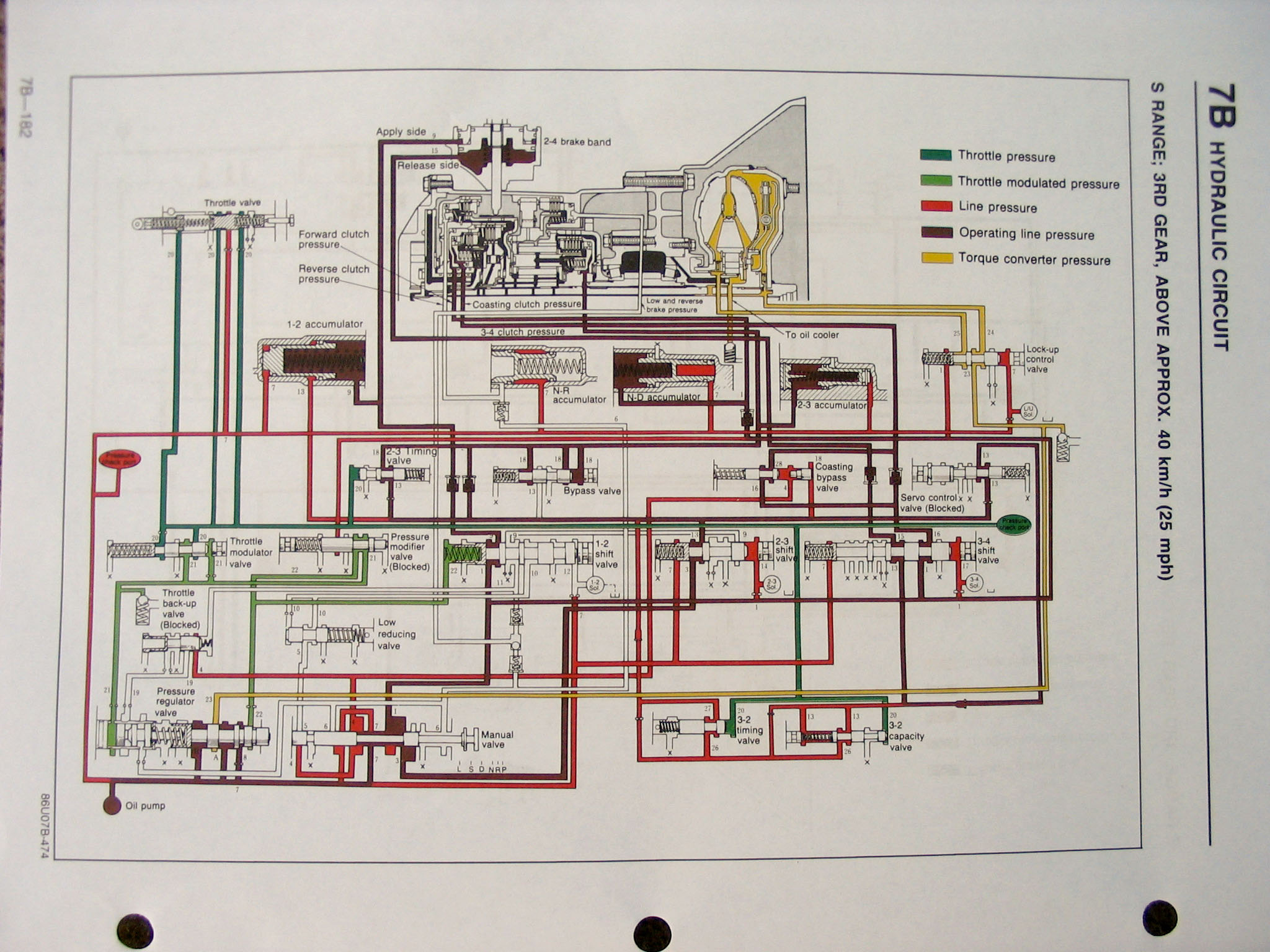

S Range; 3rd Gear, Above 40 km/h or 25 MPH


L Range; 1st Gear


L Range; 1st Gear, Hold


L Range; 2nd Gear, Below 110 km/h or 68 MPH


L Range; 2nd Gear, Above 110 km/h or 68 MPH
