Differences between 4WS and 2WS

So since Zach suggested it, let's post up what we know.




Power steering pump: The 4WS pump is larger than the 2WS counterpart.

Front swaybar: The 4WS front swaybar is 20mm, whereas the 2WS is ___mm?

Rear swaybar: Rear swaybar has different mounting style (As it has different endlinks). Is ___mm in size, while the 2WS version are ___mm in size.

Rear endlinks: 4WS have a hybrid endlink system, with the standard nut/washer style on top, and a "tie-rod" style on the bottom.

Fuel tank: The 4WS models come with a tank that is split down the center, allowing the rear steering shaft to come under the center of it.

Fuel pump: 4WS models have a 2nd fuel pump, known as a transfer pump to pump fuel into the one side when the other bank runs low.

Cosmetics: 4WS models have "4WS" labeled on steering wheel, and noticable 4WS stocker on rear trunk lid.

Power steering rack: 4WS models have a different front PS rack, and have the added bonus of a power steering rack in the back.

Electronics: 4WS models have additional electrical boxes under the seats, such as the timer module under the passenger's side seat.

Suspension: 4WS models were not offered with AAS suspension as the 2WD versions were, but were given a RSTB from the factory. They also did not come with a lower tie bar, as none of the 89's did.

Year: Only offered in 1989 as the MX6GT, while in 1988 the 626 was offered in a 4WS version (Only blue interior/white exterior)

Production numbers: If anyone could get me these, Id be amazed.



If anyone can fill int he blanks, correct info, or add more for it Ive been sick and out of work for a few days, so Im just being bored
defiler is offline
Sponsored Links
Advertisement

Old 7-10-08, 22:09

compnut21's Avatar

Join Date: Oct 2007
Location: Renton
Posts: 3,379
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Power: 5

the bar that runs to the shifter has a weird kink in it to clear the 4ws shaft. not the shifting link, but the one that holds the shifter parallel to the tranny.

4ws also has different wheels.

rear struts are different from what i read, but if you use the stock strut mount you can use any strut.

Last edited by compnut21; 7-11-08 at 0:21.
compnut21 is offline
Old 7-10-08, 22:45

compnut21's Avatar

Join Date: Oct 2007
Location: Renton
Posts: 3,379
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Power: 5

trunk lid


wheels

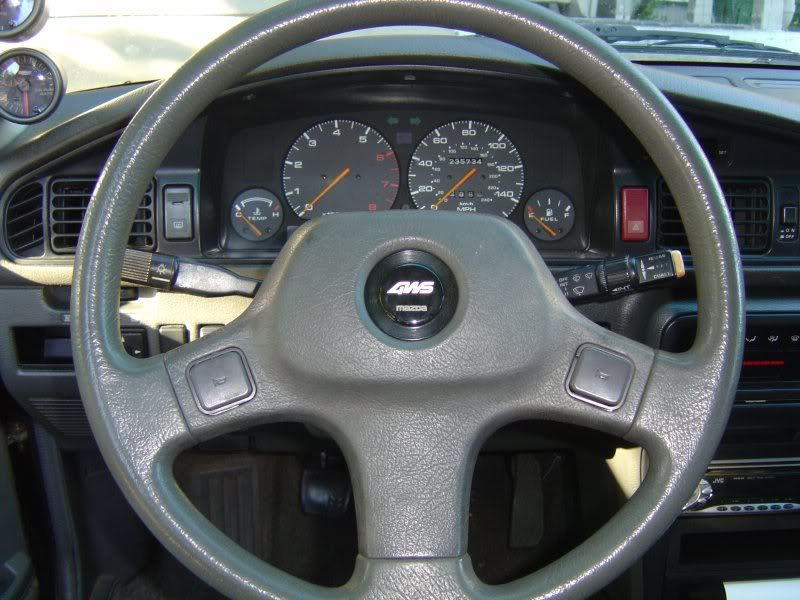

steering wheel
