hey guys. kenholland sent me this ecu diagram and thought id share it with everyone. i converted it from a doc, to pdf to image so that i can upload it into my photobucket. ill keep it on there for as long as possible. i mean it's not much but its something...

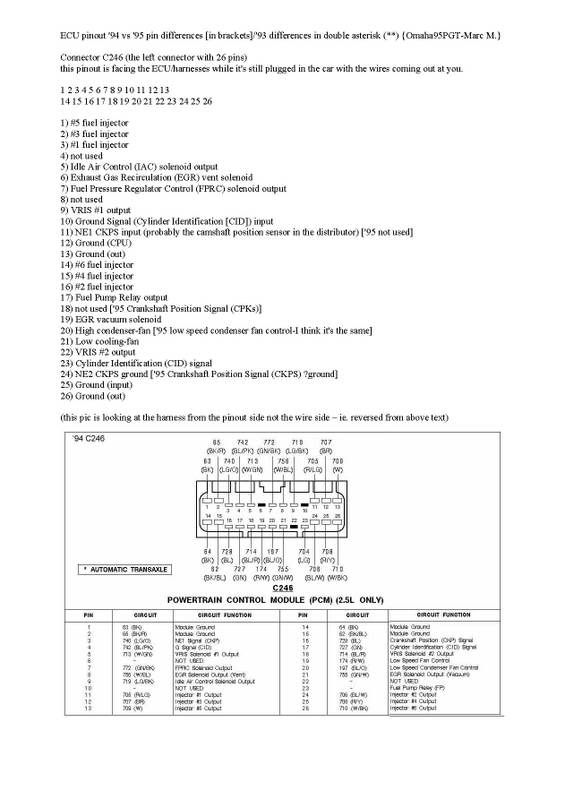

pg1

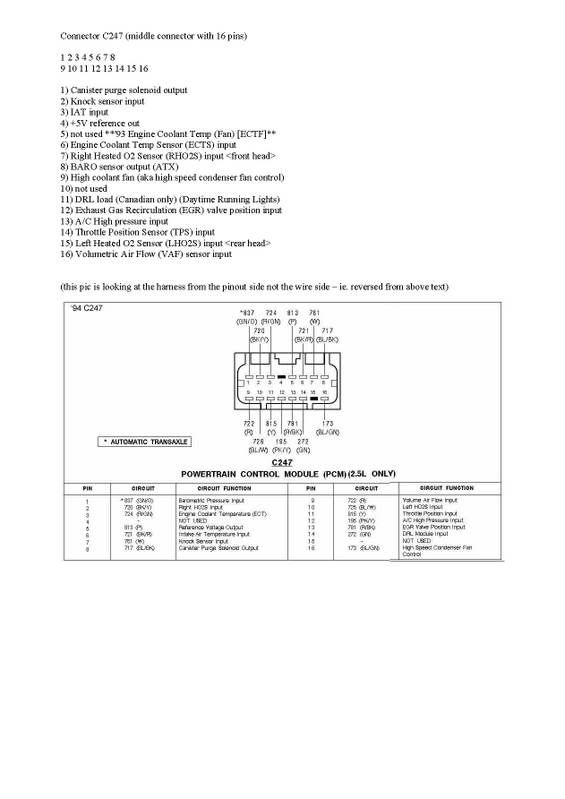

pg2

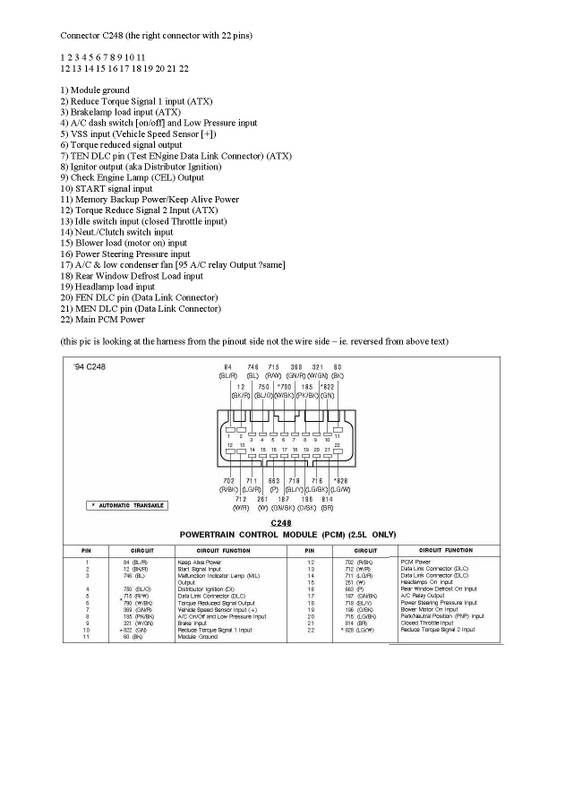

pg3



·
Registered
Joined
·
17 Posts
hey guys. kenholland sent me this ecu diagram and thought id share it with everyone. i converted it from a doc, to pdf to image so that i can upload it into my photobucket. ill keep it on there for as long as possible. i mean it's not much but its something...
Does 2U KL28D ECU share the same pin configuration?


·
Registered
Joined
·
1,458 Posts
Discussion Starter · #5 ·
im not entirely sure.. i just used this for my US spec ecu...
